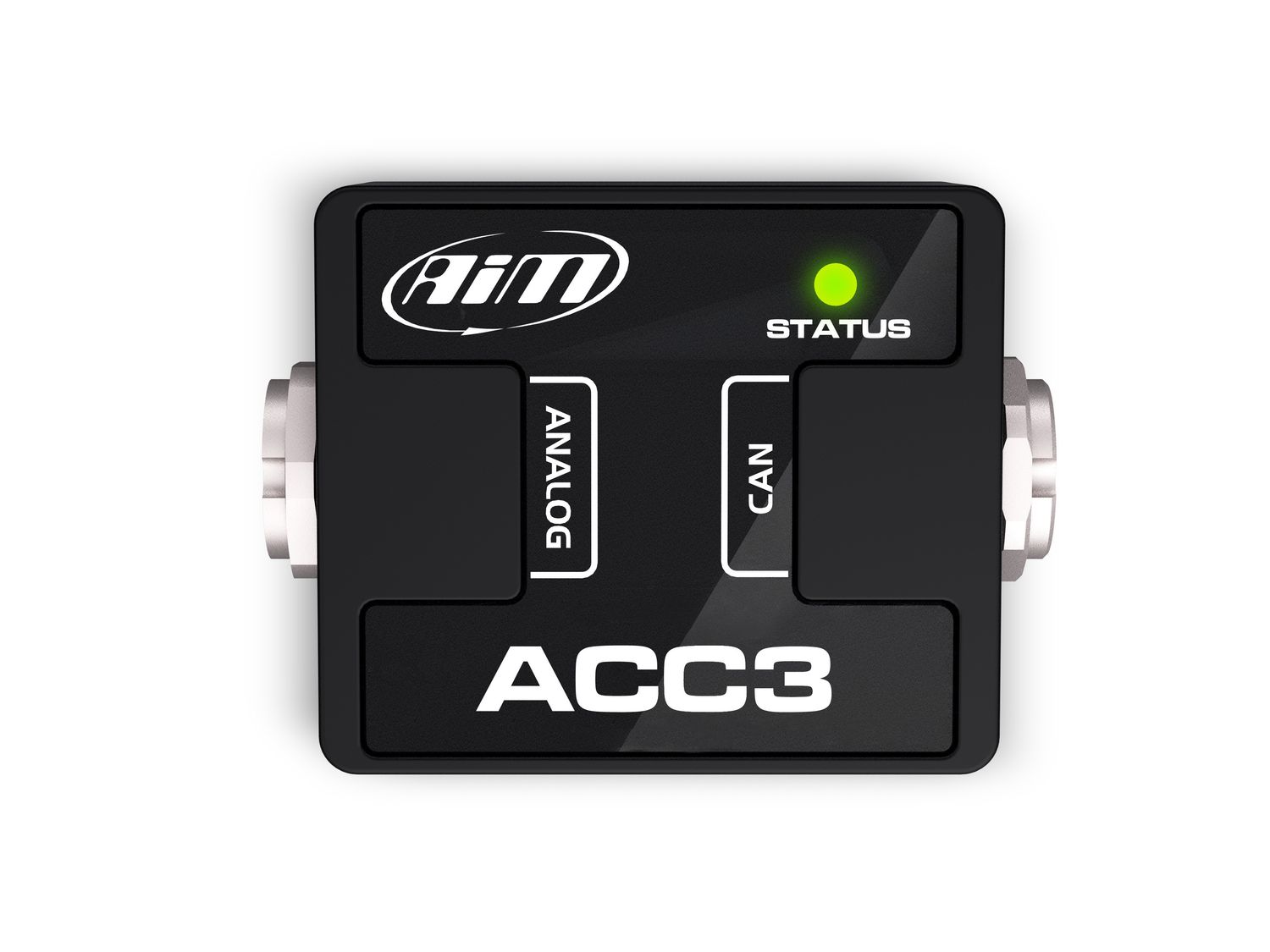

ACC3 (Analog CAN Converter) is an expansion module that expands the possibility to read extra channels from an AiM Master unit of the last generation.

ACC3 samples up to 4 signals and transmits their converted values on AiM EXP CANbus, with a maximum frequency of 1000Hz each.

The four ACC3 signal inputs are managed as follows:
• two inputs (Ch01 and Ch02) can only be analog;
• two inputs (Ch03 and Ch04) can be both analog or digital to handle speed sensors.

ACC3 can be connected to the following AiM devices:
• MX 1.2-1.3 (all versions)
• MX V2 • PDM (all versions)
• Solo 2 DL (provided that the logger is externally powered)
• Solo2DL v2
• SW4
• XLog (provided that the logger is externally powered)
• ECULog
• EVO4S
• EVO5
• MXPS
• MXS Strada Light
• MXS v2
• MXsl
• MXm
• MXm v2
• MXq
• MX2E
• MXK10
