NEW - MXT Dash Logger (Contact us for special order)
Product Details
Product Details
All prices quoted in this Store include Australian GST if viewed within Australia online.
If you are viewing this Online Store from outside of Australia, GST is not included in the price shown,

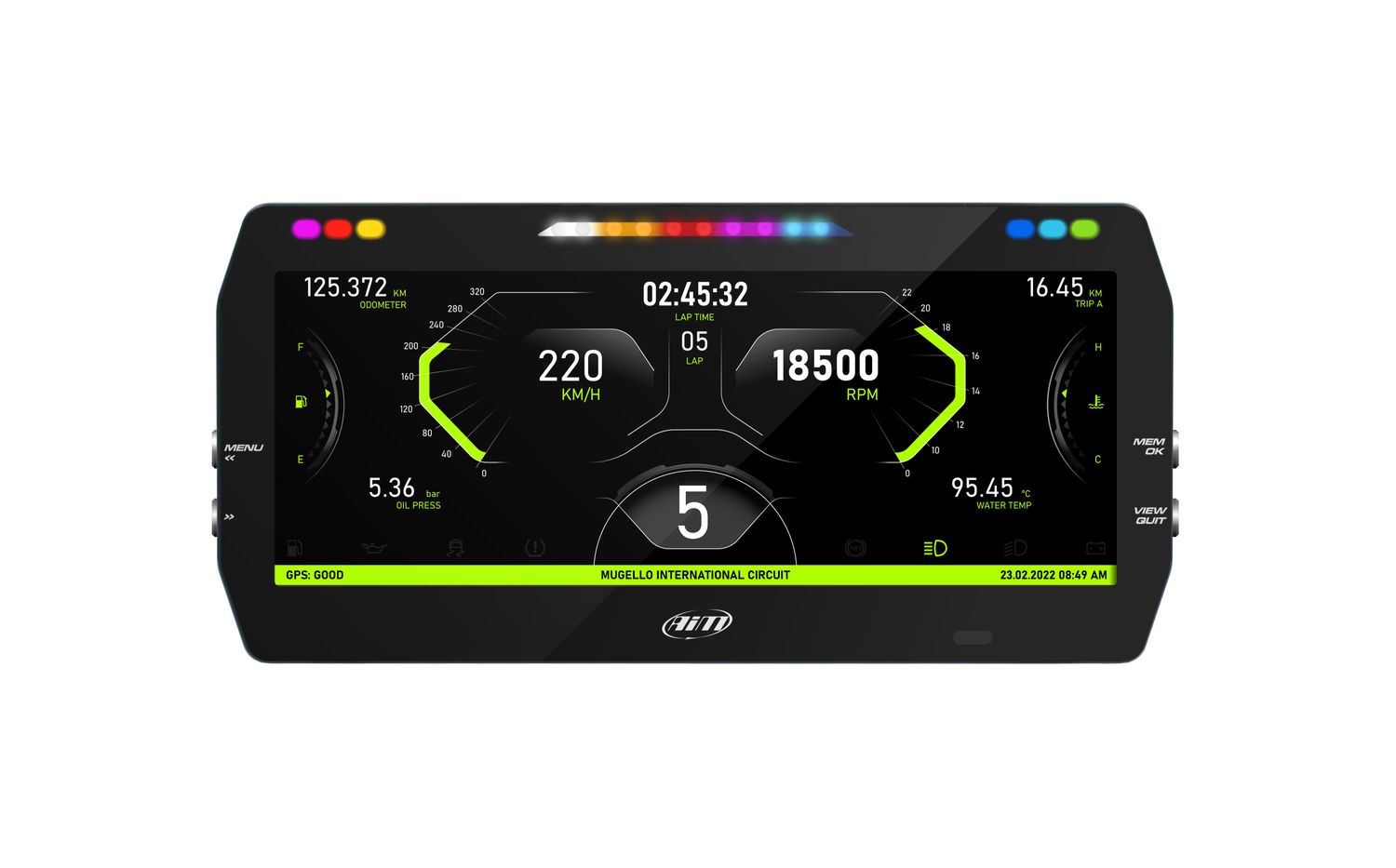

AiM MXT 1.3 Logging Dash
The 10'' colour TFT dash logger for motorsports
AiM dash loggers are designed to acquire and display data coming from your ECU, as well as from the GPS09c Module included in the kit (dash logger versions only), analog/digital inputs and predefined math channels. Performance and data acquired can also be increased adding up to eight expansion modules.
MX Series manages CAN, K-Line and RS232 ECU communication lines and its huge database includes
more than 1,500 ECU protocols.
| Display |
10” TFT
|
| Resolution |
1280x480 pixels
|
| Contrast |
1,100:1
|
| Brightness |
800cd/m2
|
| Ambient light sensor |
Yes
|
| Alarm LEDs |
6 RGB freely configurable
|
| Shift lights |
10 integrated freely configurable RGB LEDs
|
| CAN connections |
3
|
| ECU connections |
CAN, RS232 or K-Line
|
| ECU compatibility |
+ 2,000 industry leading ECUs
|
| Expansion CAN connection |
GPS09c, Channel Expansion, TC Hub,
Lambda Controller, SmartyCam 3 Series |
| Inertial platform |
Internal 3 axis ±5G accelerometer + 3 axis gyro max 100 Hz
|
| Analog/digital inputs |
8 fully configurable, max 500 Hz each
|
| Digital inputs |
4 Speed inputs, lap signal, coil RPM input
|
| Digital outputs |
2 (1 A max each)
|
| Second CAN |
Yes
|
| Wi-Fi connection |
Yes
|
| Internal memory |
4 GB
|
| Body |
Anodized Aluminum
|
| Pushbuttons |
Metallic
|
| Connectors |
2 Motorsport connectors + 1 Binder connector
|
| Power consumption |
450 mA
|
| Dimensions |
278x135x43.2 mm
|
| Weight |
1,200 g
|
| Waterproof |
IP67
|
