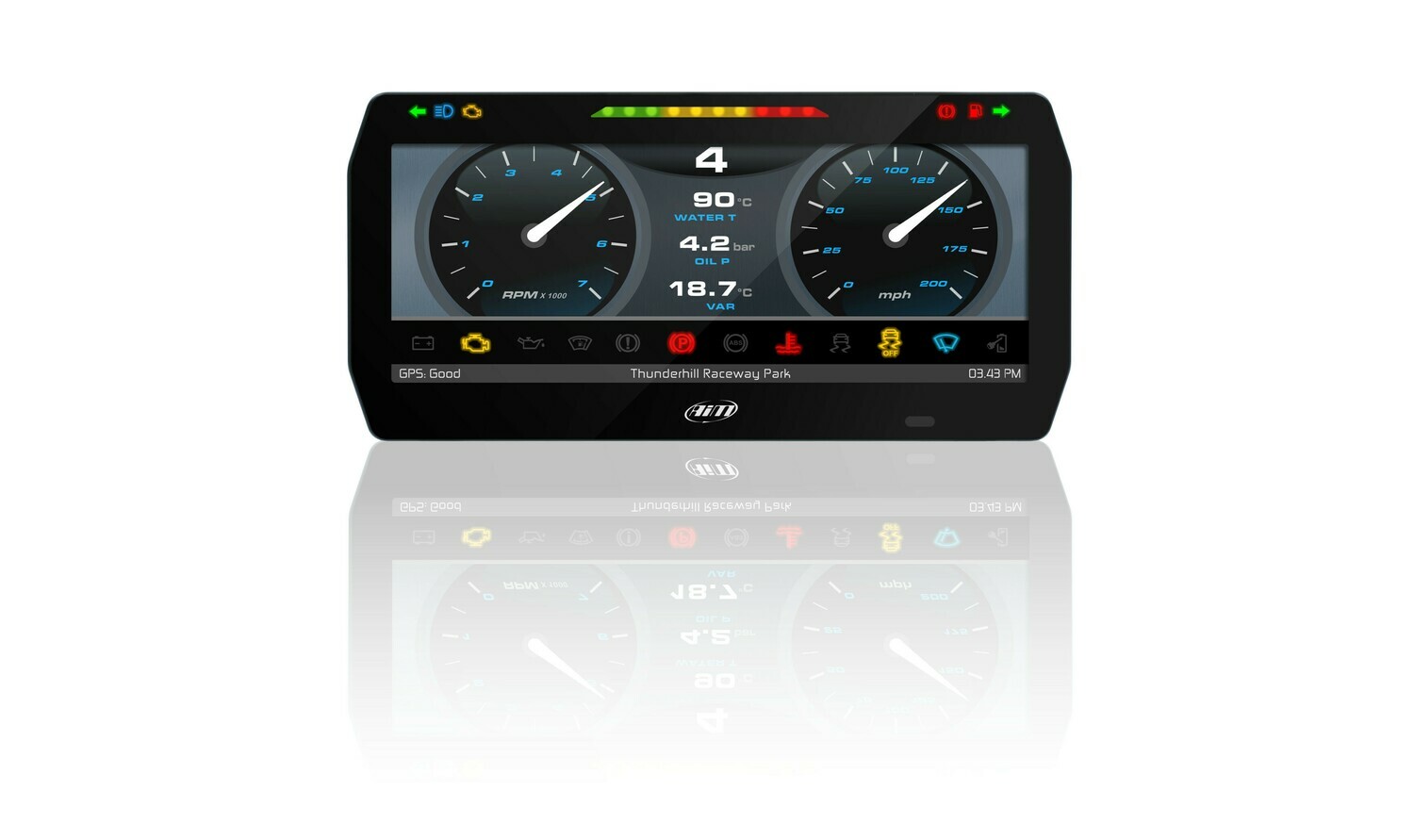

THIS IS ONLY THE INDIVIDUAL DISPLAY DASH, PDM SOLD SEPERATELY

All prices quoted in this Store include Australian GST if viewed within Australia online.

If you are viewing this Online store from outside of Australia, GST is not included in the price shown.

PDM08 Power Distribution Module is designed to distribute power to multiple circuits on your vehicle, easily replacing traditional fuse and relay systems.

Our PDMs, housed in an anodized billet aluminum case, are designed to handle the rigors of motorsport and include a complete professional data logger and internal dash controller.

An AiM PDM at the center of vehicle electronics will greatly simplify your wiring harness and electronics installation while providing much more control.

PDM08 also offers some interesting features, like:

- ECU connection, for getting data from your ECU

- Optional Display controller, for easily managing a 6” or 10” display

- Datalogging, for avoiding adding another logger to your car

- Mirror camera (optional extra), for easily getting a back view while you drive your car in reverse in the paddoc

New INTEGRATED Power Distribution Module
+ 4 Gb Datalogger

Dash 6” or 10” (OPTIONAL)

GPS Module for automatic Lap Time and track position (OPTIONAL)

PDM08 with 08 High Side Outputs

More info

PDM kit configuration with Optional extras

Power Outputs

The PDM32 and PDM08 offer four different Power Outputs Levels:

The PDMs offer four different Power Outputs Levels:

Each output provides status feedback for open circuit, short circuit, high temperature, over current, under voltage and over voltage. Inrush current, number of fault retries and the time between retries are all definable.

All the outputs may be configurable as PWM and allow soft start/stop.

For every output, a multicolour LED shows the status:

• Enabled/disabled
• Activated or not
• Fault

Individual power outs can be configured with an easy-to-use visual interface.

Power Inputs

PDMs feature the following Inputs channels:

GPS Module

PDM has an optional GPS Module available which comes with 4,000 tracks in their database and automatically select the one you are driving on, in order to calculate Lap Time when you pass the start/finish line.

Data Logger

An internal data logger is capable of recording all the analogue inputs, digital inputs, ECU channels, GPS values, Currents, status of all the Power Outputs. Here an example of what the recorded data may show, during engine cranking.

• In red, the ignition push button

• In blue, the battery voltage drop
• In purple, the current absorbed by the solenoid
• In dark green, the current absorbed by the fuel pump
• In green, RPM Value
