Key Features :

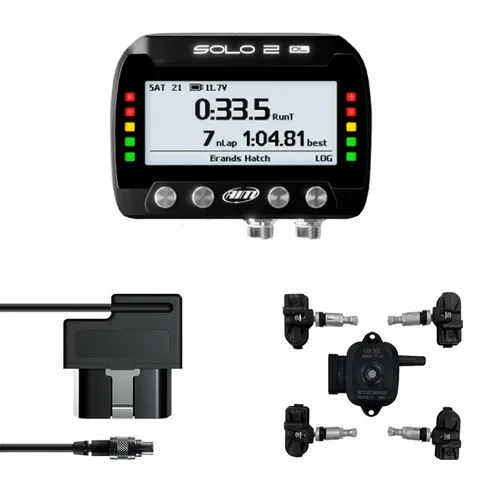

Plug & Play Car Racing Tyre Pressure Monitoring System

The Plug & Play Tyre Pressure Monitoring System utilises robust sensors for each wheel; these high-resolution sensors measure tyre pressure and temperature, transmitting securely coded data to the onboard receiver.

Tyres are critical to racing performance and, getting the best from each tyre is essential to unleashing pace. Unfortunately, constant braking, turning, and enormous rotational forces can lead to incredibly high-temperature build-up in the tyres.

The TPMS is the ultimate tool for alerting drivers to a change in tyre pressures and providing data on how the tyre pressures alter throughout your races.
All Sensors are pre-programmed in-house to be set 1, set 2 or set 3 or more if required. These can be changed as needed with the handheld programming unit.

The TPMS is compatible with our Aim Dash/Loggers (except Solo 2). In addition, it provides a method of displaying or logging real-time tyre pressures.

The connection to our AiM dash/Loggers is typically on CAN2. The CAN Protocol is available in the Downloads Tab.

You may require an extra loom or connector for the dash as the CAN2 connection is on the second connector.

Please Note: AiM Dashes and Loggers will require a CAN Protocol obtained from files available after purchase

Lightweight sensors

Automatic learning functions for sensor serial numbers & wheel location

CE & FCC Compliant

Connection output for CAN 2.0A up to 1 Mbit/s (default)

Pressure & Temperature resolution per wheel 15.7 Mbar

Pressure & Temperature accuracy per wheel +/- 20Mbar

Sensors & receiver protection IP67

Any number of sensors can be added to the system

1 Receiver required for all four sensors

Sensor update frequency 2Hz

When It Comes To Grip, Tyre Temperature Is Vital.

prev

next

TPMS Receiver

The TPMS Receiver is compatible with race car applications and competitions. The receiver utilises 1 Mbit CAN (11 bit), which has become standard over the years for professional ECUs, Data Loggers and dashboards within motorsport.

The receiver has four unique identification numbers for corner positions and will ensure that it can read only the sensors with these numbers. Can programme any number of additional sensors. With serial numbers to make them compatible with the receiver.

You can use the receiver for one, two, or three and more sets of wheels.

---

TPMS Sensors

The TPMS sensors are already pre-assigned FR, FL, RR, RL, so all you need to do is connect the sensors to the correct tyre, and all the data will be recorded on the receiver and then overlayed onto your dash/logger.

Each of the TPMS Sensors has a battery lifespan of a minimum of two race seasons.

Spare sensors can be programmed with any of the serial numbers that have been allocated to the receiver and sensor IDs of two unmounted wheels can be swapped.

The sensors are supplied with a 11mm valve stem.
