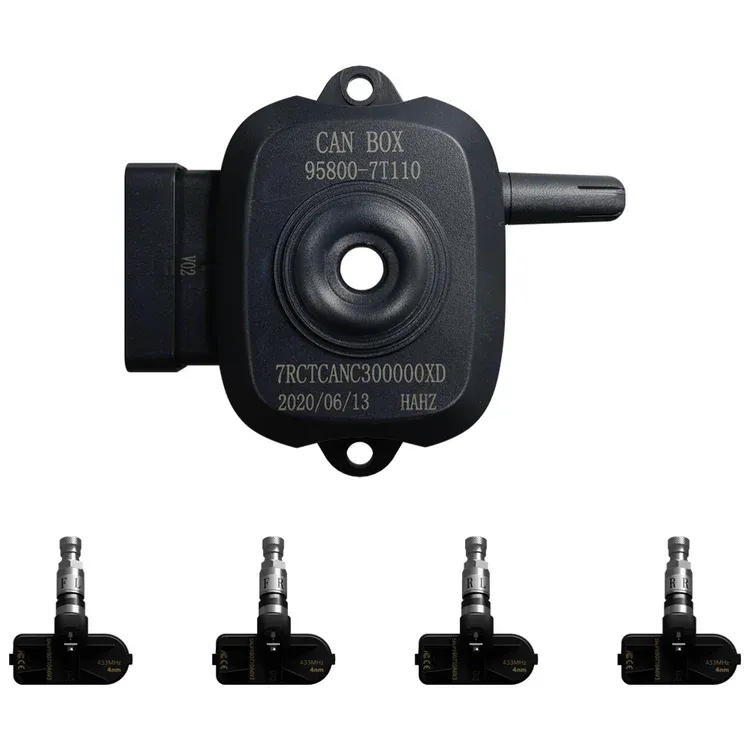

The TPMS Tyre Pressure Monitoring System is the ultimate kit for alerting drivers to a change in Tyre pressure and for providing data on Tyre pressures throughout your race.

Key Features :

Tyre Pressure Monitoring System

The Tyre Pressure Monitoring System utilises robust sensors for each wheel; these high-resolution sensors measure tyre pressure and temperature, transmitting securely coded data to the onboard receiver.

Tyres are critical to racing performance and, getting the best from each tyre is essential to unleashing pace. Unfortunately, constant braking, turning, and enormous rotational forces can lead to incredibly high-temperature build-up in the tyres.

The TPMS is the ultimate tool for alerting drivers to a change in tyre pressures and providing data on how the tyre pressures alter throughout your races.
All Sensors are pre-programmed in-house to be set 1, set 2 or set 3 or more if required. These can be changed as needed with the handheld programming unit.

The TPMS is compatible with our Aim Dash/Loggers (except Solo 2 & Mychron 5s). In addition, it provides a method of displaying or logging real-time tyre pressures.

The connection to our AiM dash/Loggers is typically on CAN2. The CAN Protocol is available in the Downloads Tab.

You may require an extra loom or connector for the dash as the CAN2 connection is on the second connector. Please see the technical documentation for your device for connection information.

Please Note: AiM Dashes and Loggers will require a CAN Protocol obtained from the Downloads Tab.

Lightweight sensors

Automatic learning functions for sensor serial numbers & wheel location

Pressure & Temperature resolution per wheel 15.7 Mbar

Pressure & Temperature accuracy per wheel +/- 20Mbar

Sensors & receiver protection IP67

Any number of sensors can be added to the system

1 Receiver required for all four sensors

Sensor update frequency 2Hz
